U1000 Cam Box for Testing for Testing Unit Injectors & Pumps

All Makes EUI & EUP Testing with Cam Lift Settings 10 to 18mm

U1000 is designed to run on any test bench with center height higher than 124 mm and having min 10 HP drive power.
Cam Box Lift can be set between 10 and 18 mm without removing cam or even injector mounted on the cam box.

Rich Adapter Set Available

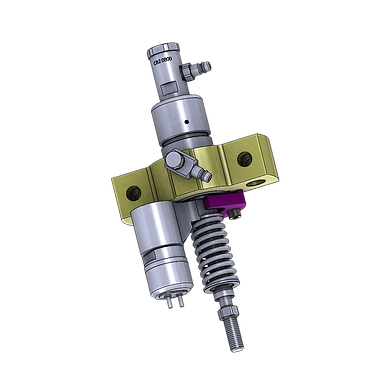

We offer adapters for Bosch, Delphi, Cummins, Caterpillar, Detroit Diesel EUI and EUP systems.

U1000 can test Cummins Celect and HPI-ISX systems

Cummins EUI systems use a different timing and fueling control by design and not many test equipment can test them properly. U1000 has a built in timing control system allowing the control the signal 360 degree around the cam profile. This feature allows to use a standard cam profile to run Cummins Celect or HPI-ISX systems.

Testing Delphi E3, Caterpillar C15-C18 or Cummins HPI Double Solenoid/Actuator systems

U1000 advanced injection controls allows to define 2 separate drive signals in different timing profile. Advanced injection controls drive the solenoids at the right timing in connection with the cam profile aiming to obtain boot or reverse booth shape injection flow.

Cam Box Specs

  • Center hight: 125mm, Adapter plates available for Hartridge, Bosch and Maktest Pump tester benches.

  • Cam Lift settings: 10 - 12 - 13 - 14 - 15 - 16 - 17 - 17.75 - 18

  • Min HP required: 10 HP,

  • Maktest recommends DirectDrive type drive connection for U1000.

Get a Quote
